FoxAlien
FoxAlien XE-Ultra 8080
68
score
- Work area
- 840 × 840 mm
- Spindle
- Not included
- Price
- $1,799.00
Scored on 68% of the model - some specs unpublished.
CNC Routers & Fabrication Machines, Compared on Data
The numbers behind the machine, not the marketing around it.
Specifications transcribed from manufacturer sheets, scores computed from those specs by a published formula, and calculators that show their working. Where a maker does not publish a figure, we say so instead of estimating one.
31 machines28 brands49 productsPrices checked Aug 1
How to use the Feed & speed calculator
- Set the material, bit type and diameter to match the tool in your spindle.
- Enter your flute count, spindle RPM and cut depth.
- Read the recommended feed rate - that is the speed to program into your CNC controller.
- Keep the chip-load band in range: if it reads high, ease the feed or raise RPM; if it reads low, push a little harder.
Feed & speed calculator
Full method →The single number that decides whether a cut burns, chatters or comes out clean is chip load. Set your material, cutter and spindle speed and read the feed rate straight off.
Recommended feed rate
396.1IPM10,062 mm/min
Plunge rate
130.7 IPM
3,320 mm/min
Chip load
0.2795 mm
0.0110″ / tooth
Chip load bandIn range
0.229 mm0.330 mm
Your chip load is 0.2795 mm per tooth, which is within the recommended 0.229–0.330 mm range for hardwood with a 6.35 mm upcut spiral.
Rankings
Computed from specifications. Position cannot be bought.
Best overall
Ordered by overall computed score
Best under $500
Ordered by computed score, under $500 list price
Best for beginners
Ordered by list price, lowest first
Best for metal
Ordered by drive quality, then spindle power
Best for woodworking
Ordered by usable cutting envelope
Largest work area
Ordered by usable cutting envelope
Best desktop mills
Ordered by overall computed mill score
Best plasma tables
Ordered by overall computed plasma score
Best waterjets
Ordered by overall computed waterjet score
Machine database
Scored 0–100 from work area, spindle power, motor quality, material breadth, rigidity and value.
Onefinity
Onefinity Elite Woodworker
68
score
- Work area
- 838 × 838 mm
- Spindle
- Not included
- Price
- —
Scored on 68% of the model - some specs unpublished.

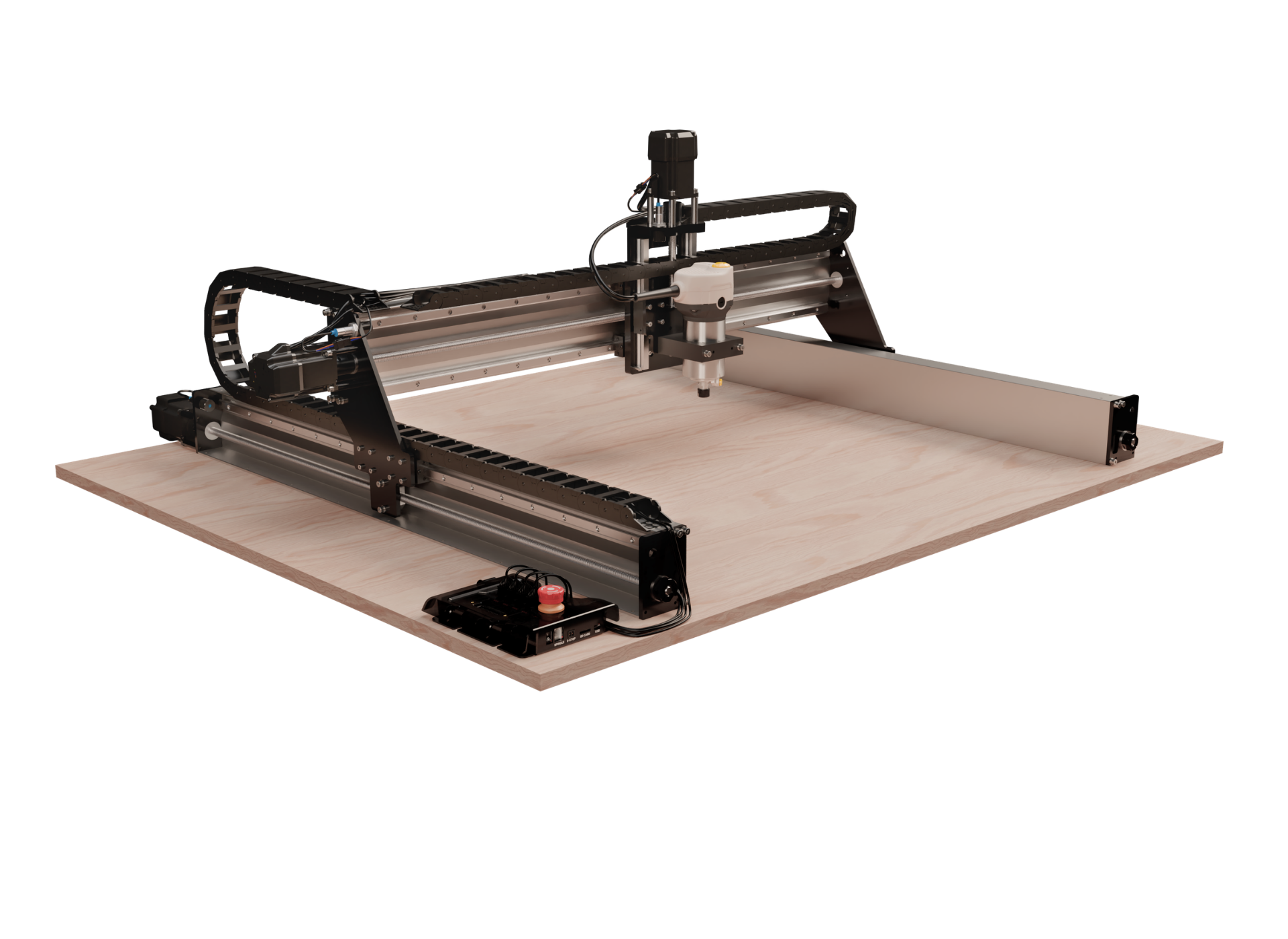

Sienci Labs
Sienci LongMill MK3 30x30
68
score
- Work area
- 813 × 813 mm
- Spindle
- Not included
- Price
- —
Scored on 68% of the model - some specs unpublished.
Genmitsu
Genmitsu PROVerXL 4030 V2
67
score
- Work area
- 400 × 300 mm
- Spindle
- 400 W
- Price
- $1,119.20
Inventables
X-Carve Pro 4x4
59
score
- Work area
- —
- Spindle
- 1,500 W
- Price
- —
Scored on 62% of the model - some specs unpublished.

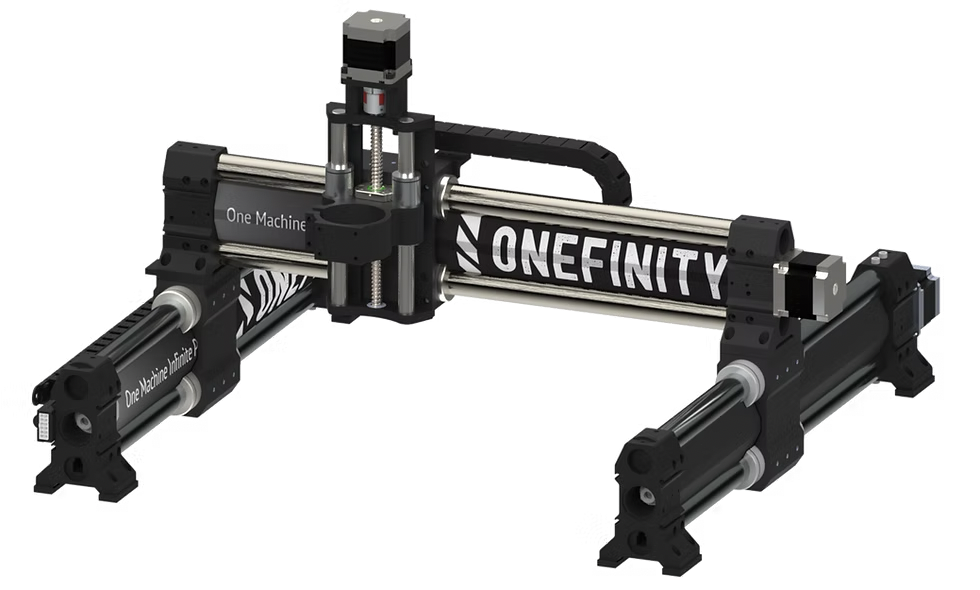

Onefinity
Onefinity Apprentice
57
score
- Work area
- 419 × 419 mm
- Spindle
- Not included
- Price
- —
Scored on 68% of the model - some specs unpublished.
Brands
Who actually makes these machines and the tooling for them.
Router bits
The part you actually replace. Prices checked daily.
Genmitsu
Genmitsu 5pc 4-Flute Carbide End Mill Set
Price unavailable
Out of stockat Amazon
This listing was out of stock at the last check. The link is kept so you can see whether it has returned.
Independent
Rankings are computed from specifications by a formula we publish in full. No brand can pay for a position, and the affiliate offer attached to a machine is not an input to its score.
Data-driven
Every specification is transcribed from the manufacturer's own published sheet, with the source recorded on each machine page. Marketplace listings and forum posts are research inputs, never sources of record.
Honest numbers
Calculator outputs are estimates derived from published tooling data and labelled as estimates. They are not test results. Where a maker publishes no figure, we show that rather than inventing one.
